Micro HDMI AOC
RICHOOW Micro HDMI active optical cable is a high-performance, low power consumption, and low cost optical fiber connectivity..
Last : HDMI Active Optical Cable 2.0
Next : HDMI 2.0 Optical Transceiver

HDMI AOC

Description

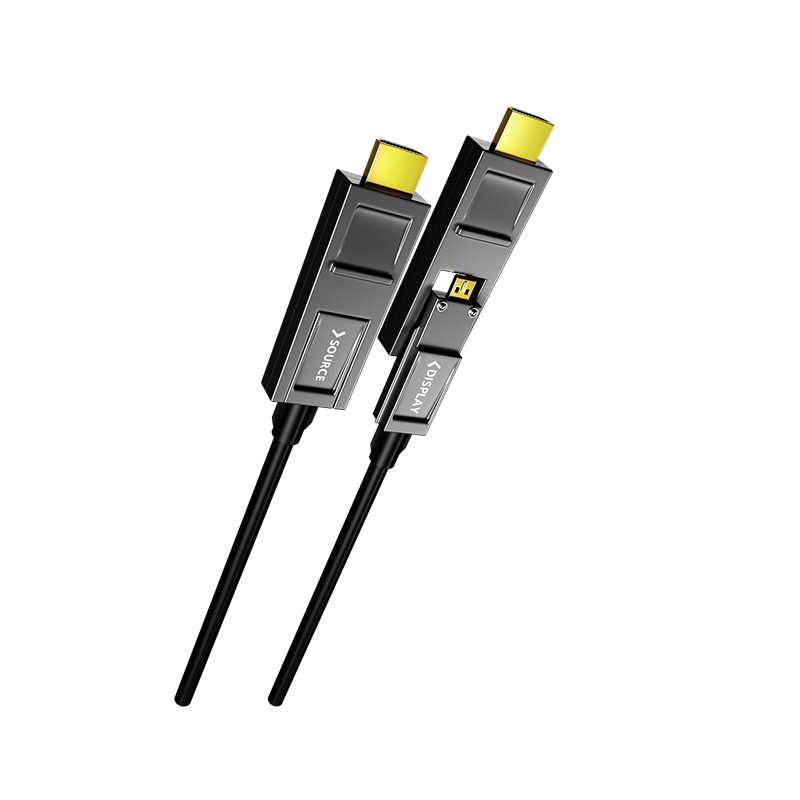

RICHOOW Micro HDMI active optical cable is a high-performance, low power consumption, and low cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The connectors are type D, equipped with detachable type A adaptor, which can be conveniently pushed through any conduit.

RICHOOW Micro HDMI active optical cable is a plug-and-play product that does not require external power supply. It supports high resolution 4K formats for connecting devices with standard HDMI interface over long distance, instead of the traditional high-loss, high-latency, and RF-interference copper wires. Moreover, compared to copper cables, Micro HDMI active optical cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.


Features

• Soft and flexible hybrid optical cable
• High speed HDMI cable
• UHD resolution 4K@60Hz
• Detachable features
• Hot pluggable
• EMI and RFI resistance
• Advanced optical engine assembly
• No external power supply required
• Suitable for long distance A/V connectivity


Parameters
Performance
HDMI Version

HDMI 2.0

Data rate

18 Gbps

Resolution4K@60Hz, 1080p/1080i/720p, backwards compatible
ColorRGB, YCBCR 4:4:4, YCBCR 4:2:2
Interface
Source/Display

HDMI Type D to Type D equipped with Type A Adaptor

Materials

24K gold plated

Optical Engine
Optical Engine TX/RX

patented optical engine assembly

Cable
Structure

4*fiber+7*copper core

Fiber

OM3 MMF

Copper Core

30AWG*2+28AWG*3+24AWG*2

Length available

1-300m (3ft-984ft)

Jacket

PVC

Color

Black

Cable Diameter

4.8mm±0.1mm

Min. Bend Radius

20mm

Max. Tensile Load

245N

Function
CEC

supported

Dolby TrueHD audio

supported

HDMI 3D

supported

HDR

supported

Environment
Working Temperature

0℃~+50℃

Storage Temperature

-20℃~+70℃

Power
Voltage

+5V

Power Consumption

250mW(max)

Packaging
1-30meter

Kraft paper box

Lengths over 30meter

Roll

More packaging list

dust cover, metal net, cable tie, etc.
