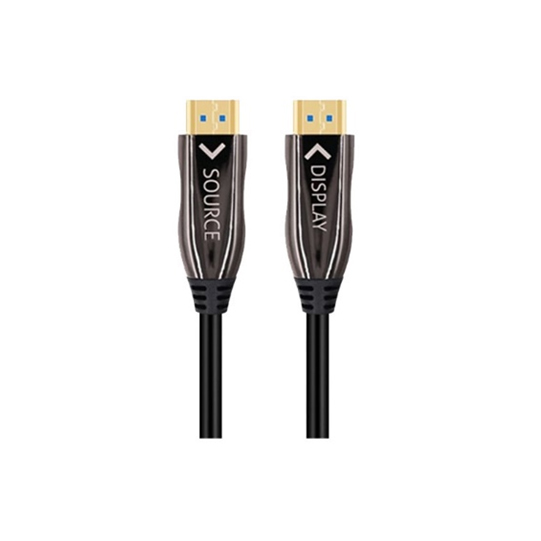

HDMI Active Optical Cable 2.0
..

Description

RICHOOW HDMI 2.0 active optical cable is a high-performance, low power consumption, low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The cable is a hybrid active optical cable, composed of four multimode fiber and seven copper cables. The multimode fiber is mainly to transmit high-speed data signals and can directly transmit high resolution, lossless 4K@60HZ ultra-high-definition video directly, instead of the traditional high-loss, high-latency, and RF-interference copper wires. Copper cables are only as control signals for transmission signals and CEC and HPD detection.

RICHOOW HDMI 2.0 active optical cable is a plug-and-play product that does not require external power supply. Compared to copper cables, RICHOOW HDMI 2.0 active optical cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.


Features

• High speed fiber optics
• Advanced optical engine
• Hot pluggable
• No external power supply required
• Low power consumption
• Long distance extension without signal loss
• EMI & RFI resistance
• Soft, thin and flexible
• Application:UHD a/v devices connectivity with HDMI interface, such as player, TV, Computer, Projector, Matrix, and so on.


Parameters
Performance
HDMI Version

HDMI 2.0

Data rate

18 Gbps

Resolution 4K@60Hz, 1080p/1080i/720p, backwards compatible
Color RGB, YCBCR 4:4:4, YCBCR 4:2:2
Interface
Source/Display

HDMI Type A to Type A male

Materials

nickel-copper

Cable
Structure

4*fiber+7*copper core

Fiber

OM3 multimode fiber

Copper Core

30AWG*2+28AWG*3+24AWG*2

Length available

1-300 meter

Jacket

PVC

Color

Black

Cable Diameter

4.8mm±0.1mm

Weight

Up to length

Min. Bend Radius

20mm

Max. Tensile Load

245N

Function
CEC

Dolby TrueHD audio

ARC

HDMI 3D

Ethernet

Environment
Working Temperature

0℃~+70℃

Storage Temperature

-40℃~+80℃

Power
Voltage

+5V

Power Consumption

≤250mW

Packaging
1-30meter

Kraft paper box

Lengths over 30meter

Roll

More packaging list

dust cover、wire net、cable tie, etc.
