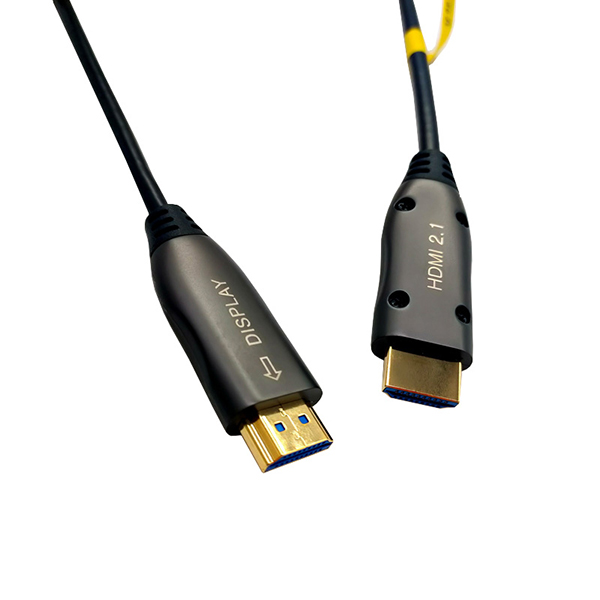

HDMI Active Optical Cable 2.1
..

Description

RICHOOW HDMI 2.1 active optical cable is a high-performance, low power consumption, low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The cable is a hybrid active optical cable, composed of four multimode fiber and seven copper cables. The multimode fiber is mainly to transmit high-speed data signals and can directly transmit high resolution, lossless 8K@60HZ ultra-high-definition video directly, instead of the traditional high-loss, high-latency, and RF-interference copper wires. Copper cables are only as control signals for transmission signals and CEC and HPD detection.

RICHOOW HDMI 2.1 active optical cable is a plug-and-play product that does not require external power supply. Compared to copper cables, RICHOOW HDMI 2.1 active optical cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.


Features

• Advanced optical engine.
• Extend HDMI up to 100m over fiber optics (MMF).
• Data rate: 48Gbps.
• Compliant with HDMI 2.1 specification.
• Longer, thinner cable without EMI/RFI emissions.
• Hot pluggable
• Powered by HDMI source output. No PSU required.
• Support e ARC, HDCP, VRR, etc.


Parameters
Performance
HDMI Version

HDMI 2.1

Data rate

48 Gbps

Resolution 8K@60Hz, 4K@120Hz, backwards compatible
Interface
Source/Display

HDMI Type A to Type A male

Housing material

Zin alloy

Cable
Structure

4*fiber+7*copper core

Fiber

50/125um multimode fiber

Copper Core

30AWG*2+28AWG*3+24AWG*2

Length available

1/5/10/15/30/50/100meter

Jacket

PVC

Color

Black

Mechanical Condition
Cable diameter

4.8mm±0.1mm

Bend radius(dynamic condition) mm

20D

Bend radius(static condition) mm

10D

Tensile Strength(short term) (N)

300

Tensile Strength(long term) (N)

150

Crush Resistance(short term)(N/100mm)

600

Crush Resistance(long term)(N/100mm)

300

Environment
Working Temperature

0℃~+70℃

Storage Temperature

-20℃~+80℃

Power
Voltage

+5V

Power Consumption

≤250mW

Packaging
1-30meter

Kraft paper box

Lengths over 30meter

Roll

More packaging list

dust cover、wire net、cable tie, etc.
