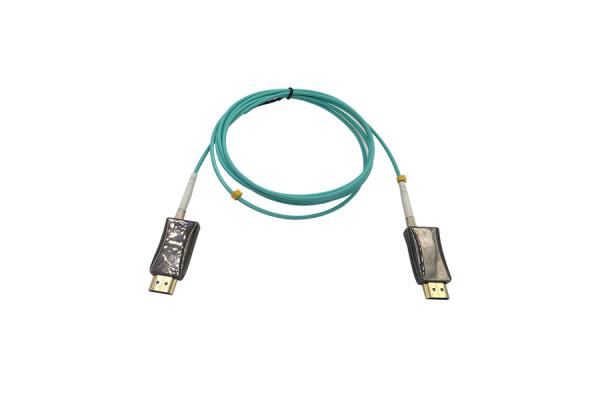

HDMI 1.4 Optical Transceiver
..
Last:period
Next : HDMI Active Optical Cable 2.1

HDMI AOC

Description

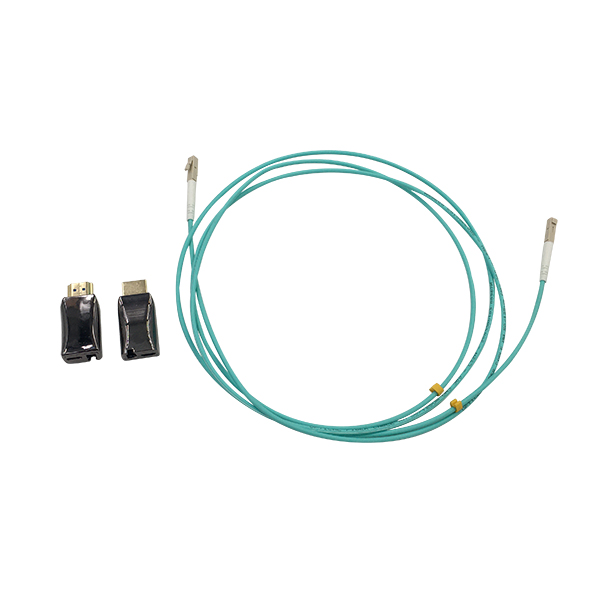

RICHOOW HDMI 1.4 optical transceiver is a high-performance, low power consumption, and low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The HDMI optical transmitter and receiver at two sides can be detachable from fiber cable, which is good for installation and maintenance.

The fiber cable is multimode single fiber cable, which is mainly to transmit high-speed data signals and can transmit high resolution, lossless 4K@30Hz ultra-high-definition video directly, instead of the traditional high-loss, high-latency, and RF-interference copper wires. Compared to copper cables, fiber cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.

The product is easy for installation and maintenance, which can save much cost. It is widely used in a/v projects related to theme park, museum, exhibition room, control room, etc.

Features

• high speed fiber optics
• HDMI signal pass-through with COB and WDM technology, no protocol conversion required
• detachable features, easy for installation and maintenance
• hot pluggable
• low power consumption
• long distance extension without signal loss
• EMI & RFI resistance


Parameters
Performance
Standard

HDMI 1.4b

Data rate

10.2Gbps

Video Resolution4K@30Hz, 1080p/1080i/720p, backwards compatible
Interface
Input /Output

HDMI Type A male/ HDMI Type A male

Power supply

Micro USB2.0 at Rx side

Cable
Cable

Patch cord

Cable Specification

Multimode single fiber 850nm OM3 50/125μm, LC-LC

Length optional

2/5/10/15/30/50/100/150/200/300/500/1000meter

Environment
Working Temperature

-20℃~+70℃

Storage Temperature

-40℃~+70℃

Power
Voltage

+5V

Power Consumption

375mW

Notes: not support HDCP function.
