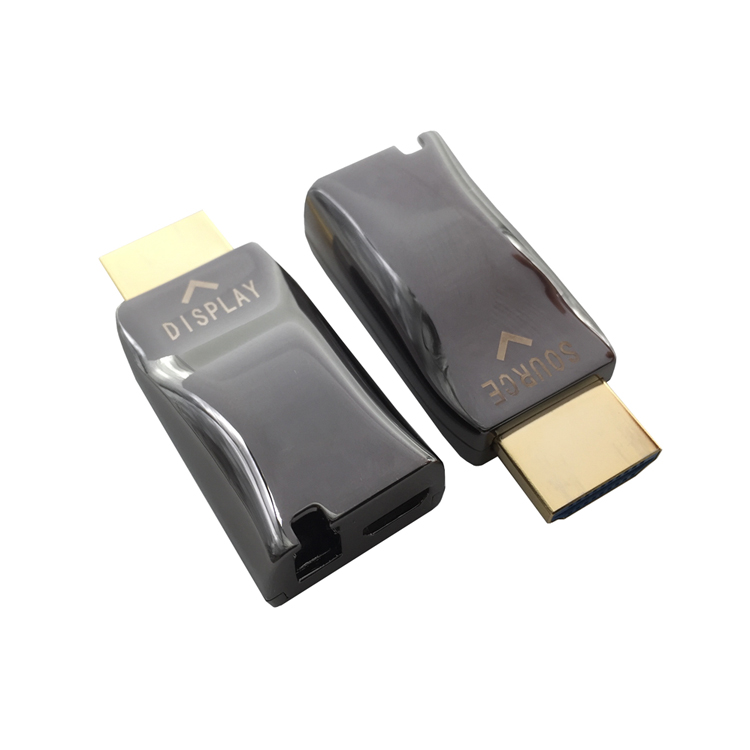

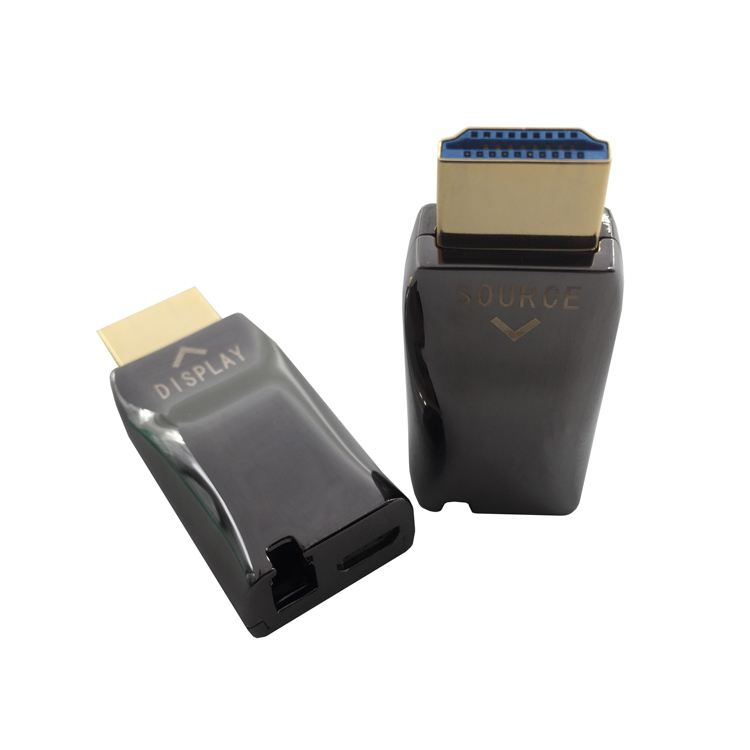

HDMI 2.0 Optical Transceiver
RICHOOW HDMI 2.0 optical transceiver is a high-performance, low power consumption, and low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The HDMI optical transmitter and receiver at two sides can be detachable from fibe..

Last:Micro HDMI AOC   Next:Period
Description

RICHOOW HDMI 2.0 optical transceiver is a high-performance, low power consumption, and low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The HDMI optical transmitter and receiver at two sides can be detachable from fiber cable, which is good for installation and maintenance.

The fiber cable is multimode single fiber cable, which is mainly to transmit high-speed data signals and can transmit high resolution, lossless 4K@60Hz ultra-high-definition video directly. The maximum transmission range is 1km, using a multimode single fiber LC-LC patch cord.

The product is easy for installation and maintenance and can save much cost. It is widely used in a/v projects related to theme park, museum, exhibition room, control room, conference room, etc.


Features

• high speed fiber optics
• HDMI signal pass-through with COB and WDM technology, no protocol conversion required
• detachable HDMI fiber optical cable, easy for installation and maintenance
• hot pluggable
• 300m long distance extension without signal loss
• EMI & RFI resistance
• soft, thin and flexible cable
• It’s suitable for a/v devices connectivity with HDMI interface, such as player, TV, Computer, Projector, Matrix, and so on.
• supporting EDID, ARC, CEC, HDCP2.2, HPD, etc.

Parameters
Performance
HDMI Version

HDMI 2.0

Data rate

18 Gbps

Video Resolution 4K@60Hz,4K@30Hz, backwards compatible
Interface
HDMI connector (Source /Display)

HDMI Type A male

Fiber connector(Source /Display) single fiber LC
Power supply

Micro USB2.0 at Display side

Cable
Cable Patch cord
Cable Specification Armored Multimode single fiber 850nm OM3 50/125μm, LC-LC
Length optional

1-300meter

Environment
Working Temperature

-20℃~+70℃

Storage Temperature

-40℃~+70℃

Power
Voltage

+5V

Power Consumption

Source<800mW; Display<400mW

Dimension
HDMI optical transmitter

45.35*20.5*12.5(mm)

HDMI optical receiver

45.35*20.5*12.5(mm)
