4K 8K UHD A/V optical connectivity solutions
-
Hotline：
13823694746
0755-21012509

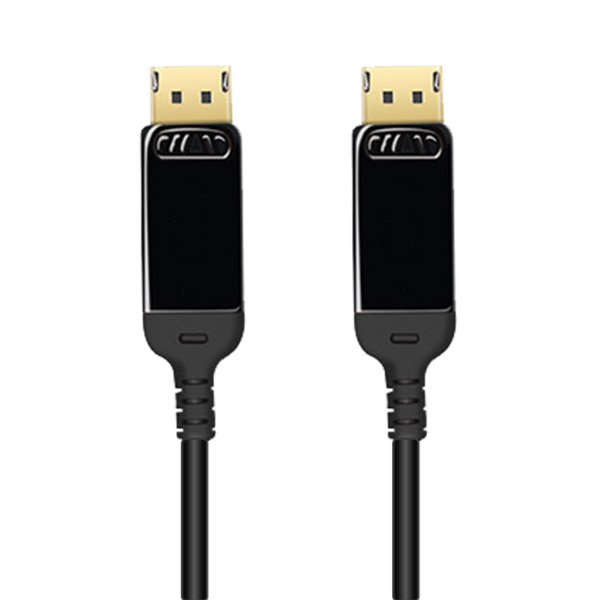

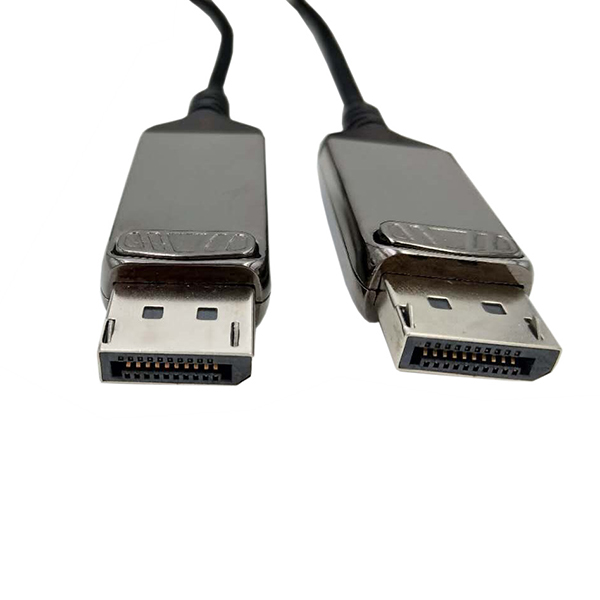

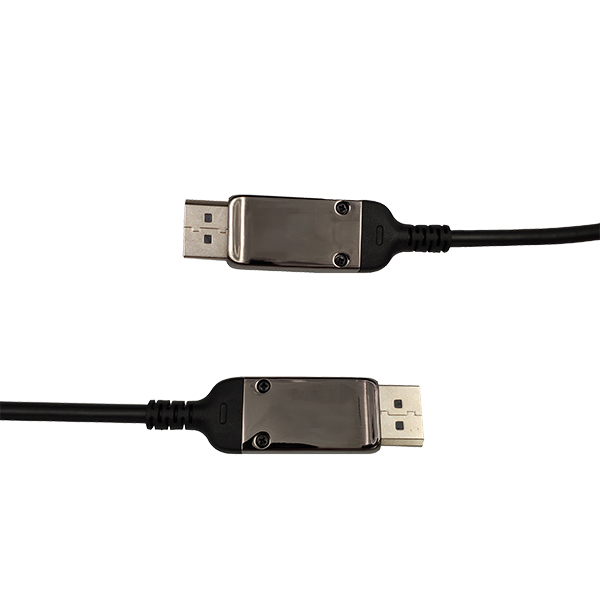

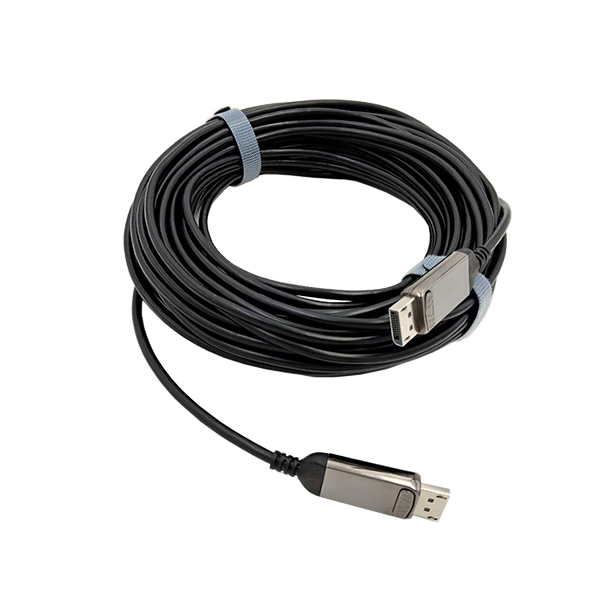

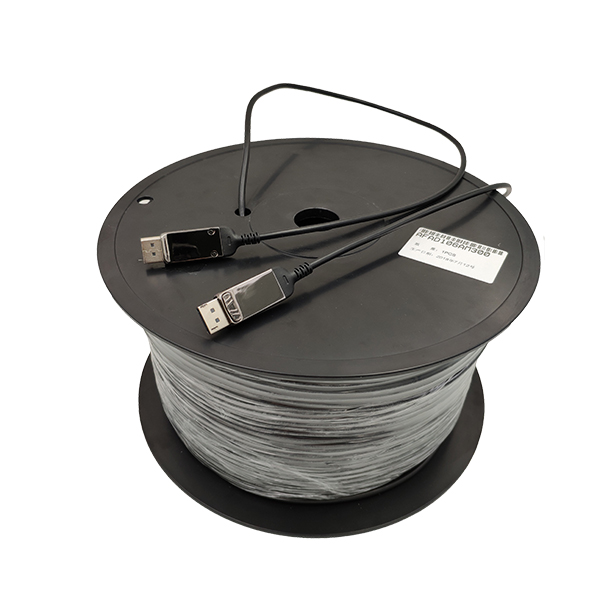

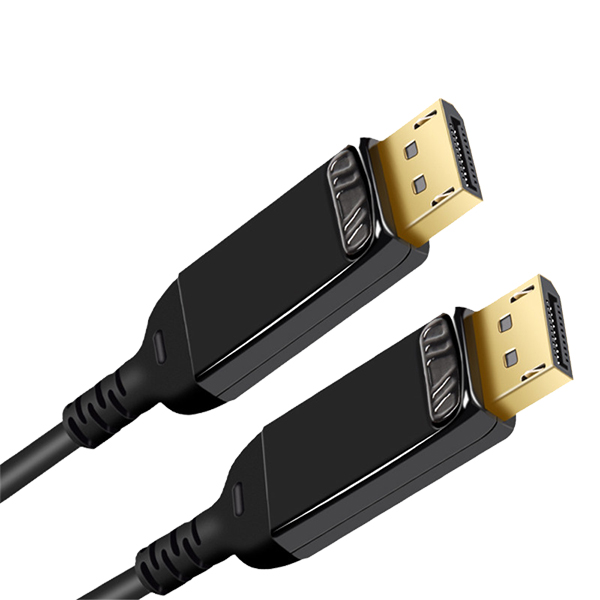

DisplayPort AOCs support DisplayPort 1.2/1.4 and up to 8K60 444 resolution. Utilizing a hybrid design of copper and fiber optics, DisplayPort cables provide full signal integrity over distance and future-proofed bandwidth for the next generation of high-resolution displays. Supporting the latest DisplayPort 1.2/ 1.4 standards,
DisplayPort AOCs are ideal for A/V distribution in conference and huddle rooms, classrooms, training rooms, lecture halls, houses or worship, digital signage, and a variety of commercial and residential A/V applications.
| Performance | |
| DP standard | DisplayPort 1.4, DisplayPort 1.2 |
| Data rate | DP1.4-32.4Gbps; DP1.2-21.6Gbps |
| Resolution | 8K@60Hz, 4K@120Hz, 4K@60Hz, backwards compatible |
| Interface | |
| Input/output | DisplayPort Type A plug to Type A plug |
| Interface materials | nickel-copper |
| Cable | |
| Cable structure | 4*fiber+7*copper |
| Fiber | OM3 MMF |
| Copper | 30AWG*2+28AWG*3+24AWG*2 |
| Length | 1-300m optional |
| Jacket | PVC |
| Color | Black |
| Reference weight | 1kg(15meter) |
| Mechanical Condition | |
| Cable diameter | 4.8mm±0.1mm |
| Bend radius(dynamic condition) mm | 20D |
| Bend radius(static condition) mm | 10D |
| Tensile Strength(short term) (N) | 300 |
| Tensile Strength(long term) (N) | 150 |
| Crush Resistance(short term)(N/100mm) | 600 |
| Crush Resistance(long term)(N/100mm) | 300 |
| Temperature | |
| Working Temp | 0℃~+70℃ |
| Storage Temp | -20℃~+80℃ |
| Power | |
| Input voltage | DP +3.3V Source power |
| Power Consumption | ≤160mW |
| Electric current | <150mA |
