Type c AOC for video
..
Last : Type c AOC for VR
Next:period

Type C AOC

Description

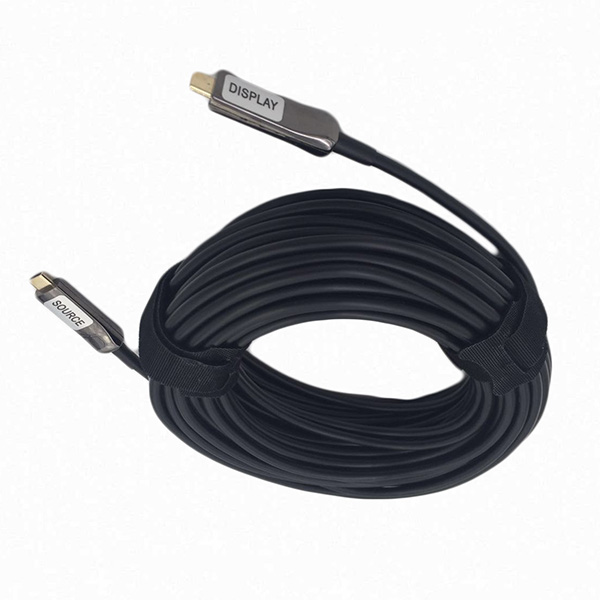

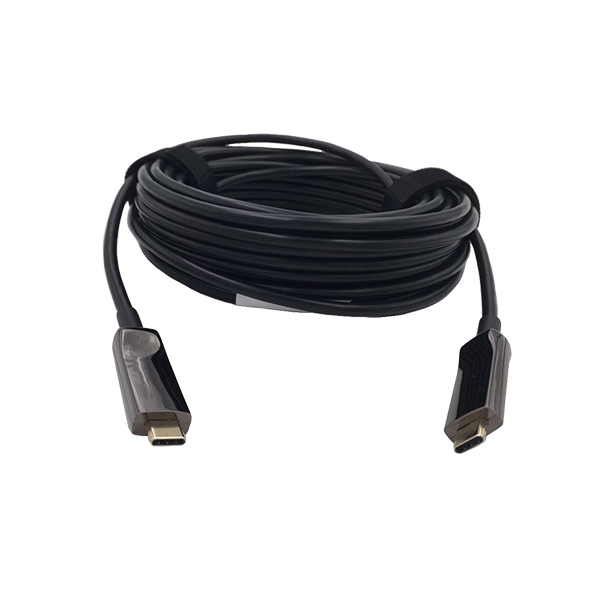

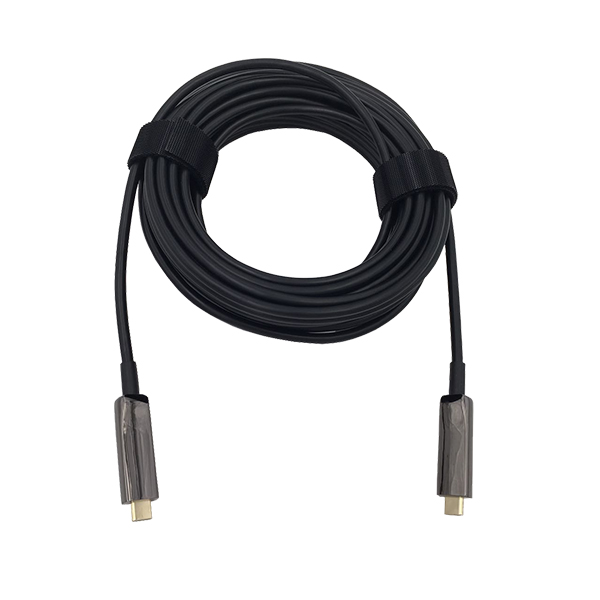

RICHOOW Type C active optical cable is a high-performance, low power consumption, low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The cable is a hybrid active optical cable, composed of four multimode fiber and five copper cables. The multimode fiber is mainly to transmit high-speed data signals and can directly transmit high resolution, lossless 4K@60HZ ultra-high-definition video directly, instead of the traditional high-loss, high-latency, and RF-interference copper wires. Copper cables are only as control signals for transmission signals and CEC and HPD detection.

RICHOOW Type C active optical cable is a plug-and-play product that does not require external power supply. Compared to copper cables, RICHOOW Type C active optical cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.

Features

• High speed fiber optics
• Advanced AFALIGHT optical engine
• Hot pluggable
• No external power supply required
• Low power consumption
• Long distance extension up to 50meter
• Soft, thin and flexible
• Suitable for VR application


Parameters
Performance
Standard

DisplayPort Alt Mode

Data rate

21.6Gbps (5.4Gbps per channel)

Video Resolution4K@60Hz/4K@30Hz/1080p/1080i/720p
Connector

Input/output

USB Type C plug to Type C plug

Cable
Cable Specification(1C*32#+DAM)+(2C*30#+DAM)1C+1C*28#+1C*24#+optical fiber x 4C+FDA
FiberOM3 MMF
Copper32AWG*1+30AWG*2+28AWG*1+24AWG*1
Regular Length2/5/10/15/20/30/50m
JacketPVC
Colorblack
O.D4.8mm±0.1mm
Weight0.5kg for 15meter
Cable Diameter20mm
Temperature
Working Temp0℃~+55℃
Power
Input Voltage+5V
Power Consumption≤500mW
Packing
1-30mBox
Lengths over 30meterRoll
More packaging listdust cover、wire net、cable tie, etc.
