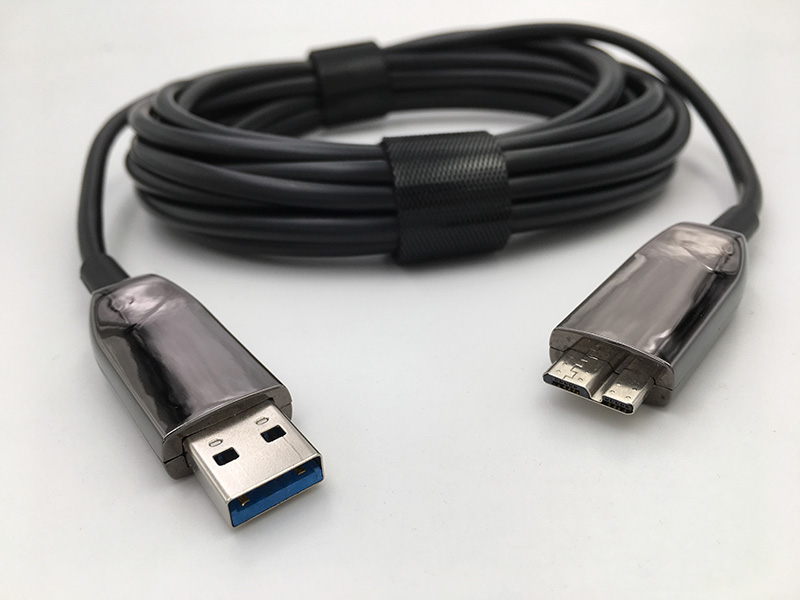

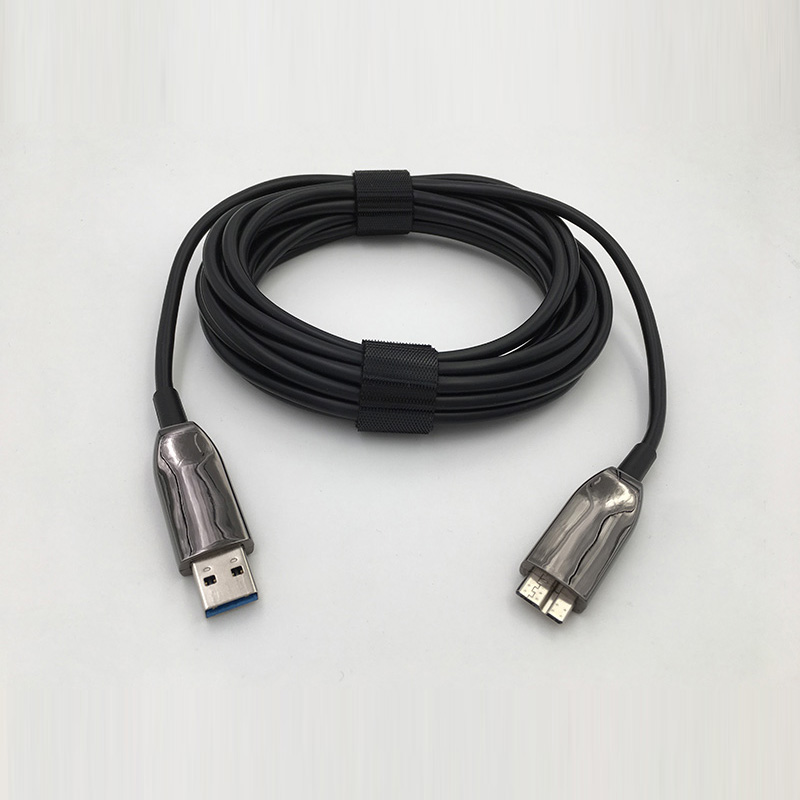

USB 3.0 type a to micro b
USB Active Optical Cable(AOC), featuring embedded optical transceiver, can reach 30meter via fiber. Its compliant with Super..
Last : USB3.0 type a to type a
Next:period

USB AOC

Description

USB Active Optical Cable(AOC), featuring embedded optical transceiver, can reach 30meter via fiber. It’s compliant with Super Speed USB electrical specification, offering seamless interoperability between existing USB devices, ensuring a trouble-free plug-and-play experience. With an ultra-thin profile and long reach, the USB 3.0 AOC breaks the distance barrier and introduces a cost-effective and high-performance solution enabling existing devices to be used in new ways such as for industrial and security cameras, industrial and medical machine control and high-definition surveillance, etc.

Features

• Convert USB electrical data signal to optical signal
• Support USB3.0 standard
• Data rate up to 5.0Gbps
• Extend USB3.0 signal up to 30meters
• Patented optical module assembly
• High-speed data transmission
• Low power consumption
• Longer, thinner cable without EMI/RFI emissions
• Working temperature: -20℃ to 70℃
• Hot pluggable
• No external power supply required
• high flexible drag chain cable


Parameters
Standard supportedUSB 3.0 up to 30meter
Connector typesUSB Standard A plug/Micro USB plug with lock
Data rate5.0Gbps
RoHS Compliance2002/95 / RoHS
Distance30 meter (Max) MMF
Working temperature-20℃~+70℃
Voltage+5V 900mA
CableHybrid cable with fiber core and copper core
Cable OD4.3mm±0.1mm
JacketPVC
