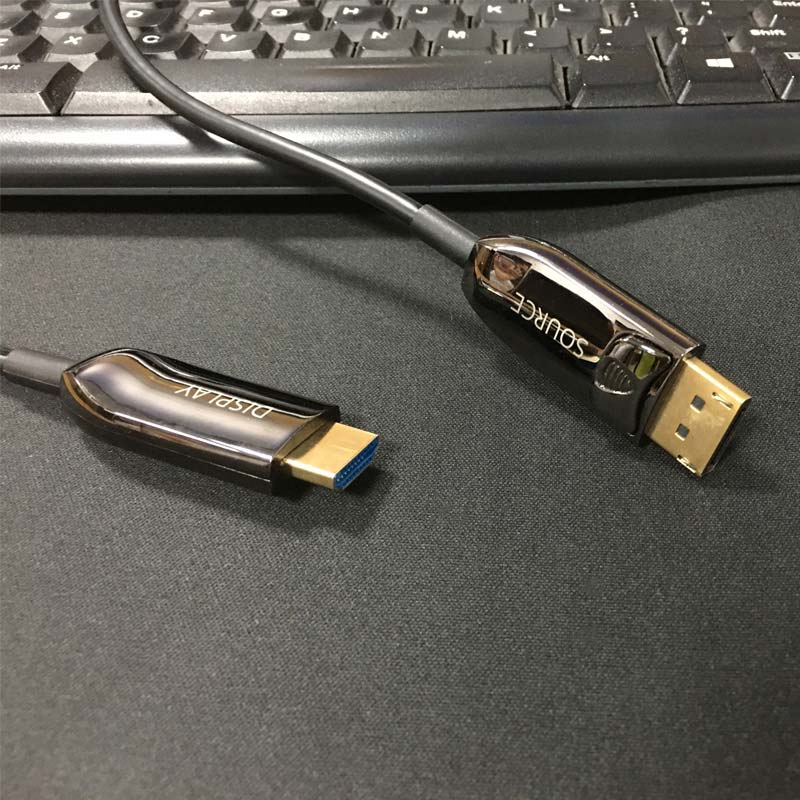

DP to HDMI
DisplayPort to HDMI AOCs support DisplayPort 1.2 and up HDMI2.0 standards. Utilizing a hybrid design of copper and fiber opti..
Last : DP 1.4
Next:period

DP AOC

Description

DisplayPort to HDMI AOCs support DisplayPort 1.2 and up HDMI2.0 standards. Utilizing a hybrid design of copper and fiber optics, DisplayPort cables provide full signal integrity over distance and future-proofed bandwidth for the next generation of high-resolution displays. DisplayPort to HDMI AOCs are ideal for A/V distribution in conference and huddle rooms, classrooms, training rooms, lecture halls, houses or worship, digital signage, and a variety of commercial and residential A/V applications.
It is a plug-and-play product that does not require external power supply. Compared to copper cables, RICHOOW DP to HDMI active optical cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.


Features

• High-Speed Fiber Optics
• Standard DisplayPort and HDMI protocol
• Photoelectric Converter: 4 channel 850nm VCSEL/PD
• Support HDR/CEC/FEC
• No external power required
• EMI/RFI resistant
• Available in 1-100 meter lengths


Parameters
Performance
DP standard

DisplayPort 1.2

HDMI standard

HDMI2.0

Data rate21.6Gbps
Resolution4K@60Hz, backwards compatible
Interface
Input

DisplayPort standard plug

Output

HDMI standard A plug

Cable
Cable structure

4*fiber+6*copper

Fiber

OM3 MMF

Copper

30AWG*2+28AWG*2+24AWG*2

Length

1-100m optional

Jacket

PVC

Color

Black

Reference weight

1kg(15meter)

Mechanical Condition
Cable diameter

4.8mm±0.1mm

Bend radius(dynamic condition) mm

20D

Bend radius(static condition) mm

10D

Tensile Strength(short term) (N)

300

Tensile Strength(long term) (N)

150

Crush Resistance(short term)(N/100mm)

600

Crush Resistance(long term)(N/100mm)

300

Temperature
Working Temp

0℃~+70℃

Storage Temp

-20℃~+80℃

Power
Input voltage

DP +3.3V Source power

Power Consumption

≤160mW

Electric current

<150mA
