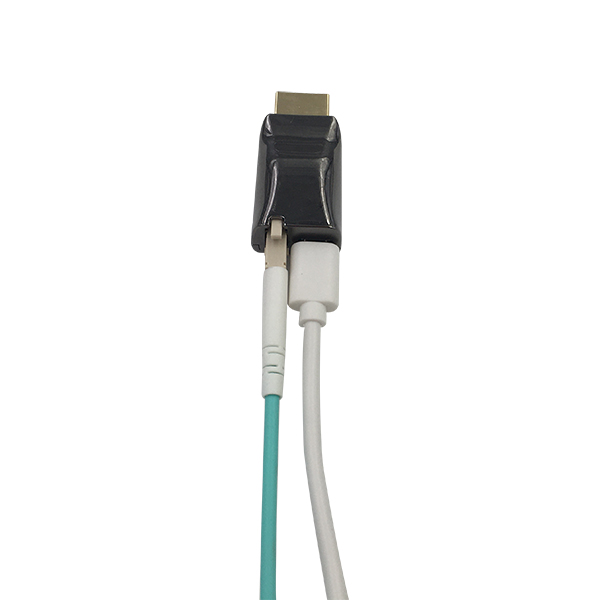

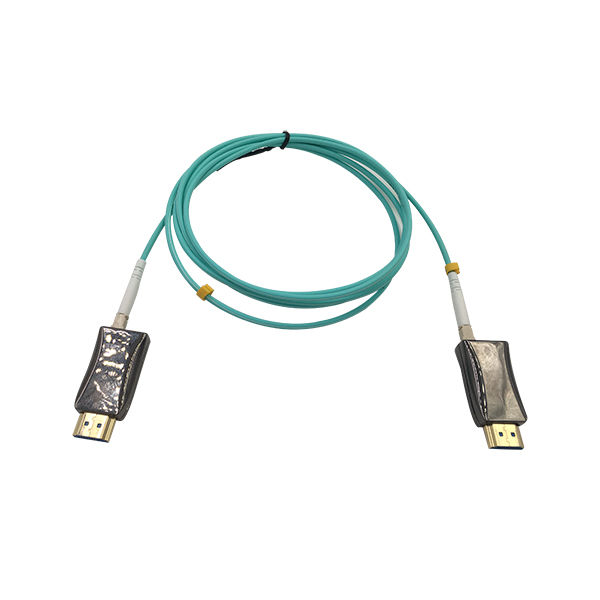

RICHOOW HDMI 1.4 optical transceiver is a high-performance, low power consumption, and low-cost optical fiber connectivity product, launched by RICHOOW CORPORATION LTD. The HDMI optical transmitter and receiver at two sides can be detachable from fiber cable, which is good for installation and maintenance.
The fiber cable is multimode single fiber cable, which is mainly to transmit high-speed data signals and can transmit high resolution, lossless 4K@30Hz ultra-high-definition video directly, instead of the traditional high-loss, high-latency, and RF-interference copper wires. Compared to copper cables, fiber cable is thinner, softer, lighter, higher resolution, no radiation, and better compatibility.
The product is easy for installation and maintenance, which can save much cost. It is widely used in a/v projects related to theme park, museum, exhibition room, control room, etc.
• high speed fiber optics
• HDMI signal pass-through with COB and WDM technology, no protocol conversion required

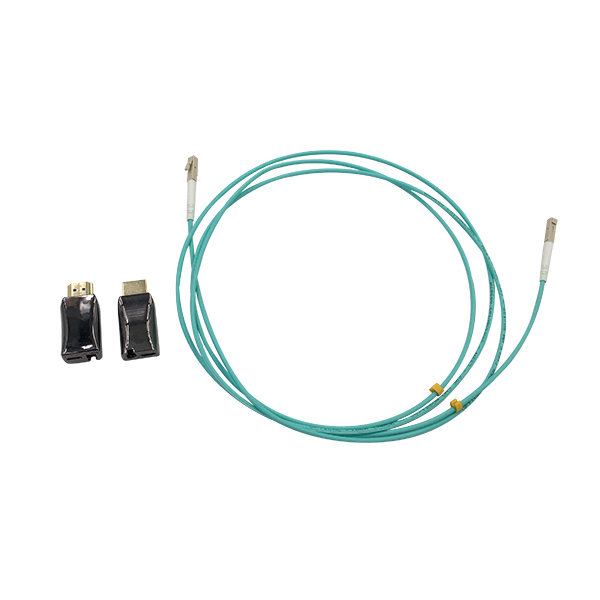

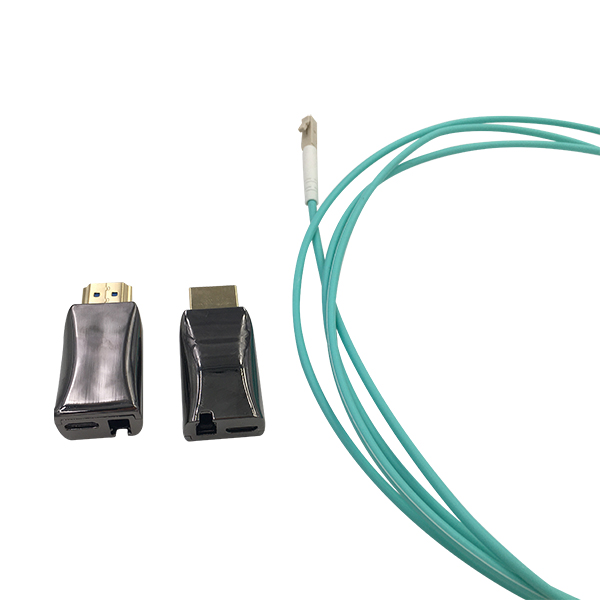

• detachable features, easy for installation and maintenance
• hot pluggable
• low power consumption
• 1km extension without signal loss
• EMI & RFI resistance
• soft, thin and flexible
• It’s suitable for a/v devices connectivity with HDMI interface, such as player, TV, Computer, Projector, Matrix, and so on.
| Performance |
Standard | HDMI 1.4b |
Data Rate | 10.2Gbps |
Video Resolution | 4K@30Hz, 1080p/1080i/720p, backwards compatible |
| Interface |
| Input/output | HDMI Type A male/ HDMI Type A male |
Power supply | Micro USB2.0 at Rx side |
| Cable |
Cable | Patch cord |
Cable Specification | Multimode single fiber 850nm OM3 50/125μm, LC-LC |
Length optional | 1-1000meter |
| Environment |
Working Temperature | -20℃~+70℃ |
Storage Temperature | -40℃~+70℃ |
| Power |
Voltage | +5V |
Power Consumption | 375mW |
Notes: not support HDCP function.
|
